Since the Indian Infrastructure and Construction Industry are taken a new pace, Every Contractor is searching for new options to speed up the projects.

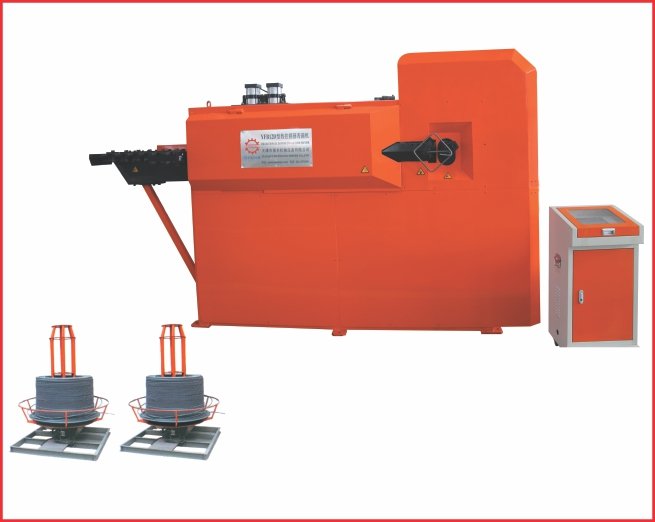

CNC highspeed Rebar processing machines are one the latest trend in the industry to increase the speed of the project. Mainly CNC stirrup benders, double benders, shear lines, pile cage making machines are being used. The stirrup benders production speed is 110 ~ 130 m/min with single rod and if used double rods then the speed will be 220 ~ 260 m/min. For the production through the stirrup benders coiled rebars are available up to 12mm diameter  in India , where as many countries have 16 mm diameter rods.

Now the Civil Contractors in Infrastructure as well as in Construction Industry are setting up a small work shop to process the rebars through this high speed machines with in the site or near the by the site. This will reduce the following : -

1)     Rebar processing time as per bar bending schedule.

2)     Number of labours can be drastically reduced

3)  Labors compliances like EPF, PT, ESIC, Labour camp…etc. along with the cost of PPE

4)     Rebar processing cost

5)     Rebar wastage by using coiled rebars.

Additional Features of Stirrup Benders

1)   Low Vibration and Low failure rate.

2)   Very easy to operate, multiple selection of shapes and exact quantity feeding

3) The angle of stirrup forming is flexible from 0~180 degrees.

4) Stirrups can bend Up or  down according to the requirement, like square, triangle, round, rectangle, U Type, and more than 140 different shapes widely used in RCC.

5)  More than 500 Shapes can be programmed and can select one at a time to produce.

6)  Straitening, Traction, Formation and cutting are fully Computer Controlled.

7)  Unique design for bending axis, Quick changing and saving time with long service life.

8) High transmission precision gives high accuracy on length by ± 1mm, and bending angle by ± 1 degree.

9)  High power saving. Consumption is only 4 ~ 5 Units per hour.

10)   Accurate shapes as per drawing.

Therefore, it is highly recommended to set up a small work shop at site or nearby to process the entire rebar as per schedule. If you have multiple projects in one city, better to set up a rebar processing shed and send to various sites according to site requirements. This will definitely speed up your project and can save cost.

For more details, please visit us at

Hall 2/A4 on  May 17~21/2022 EXCON – BANGALORE.
