Crushing, Screening & Washing Series (Day 3 of 5): VSI Rotor-Anvil vs. Rotor-Rock Dynamics for Zone-II M-Sand Shaping
Crushing, Screening & Washing Series | Part 3 of 5: VSI Rotor-Anvil vs. Rotor-Rock Dynamics for Zone-II M-Sand Shaping

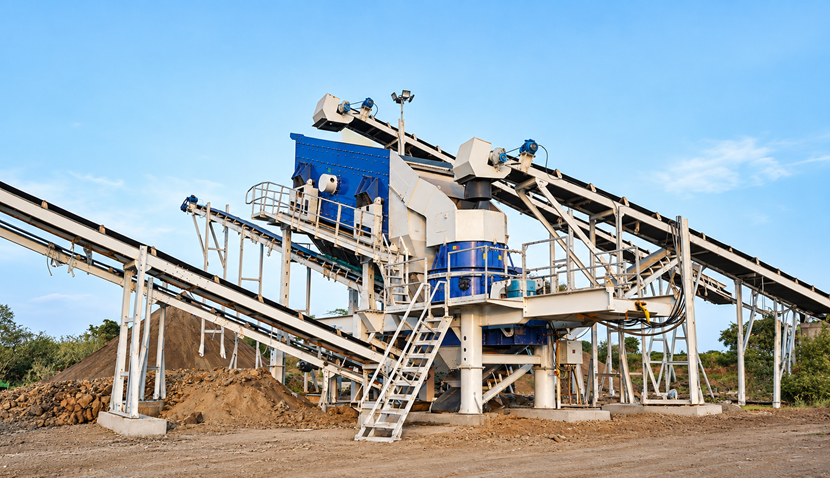

Day 3 of Construction Technology Today’s 5-part technical intelligence series tackles the tertiary VSI (Vertical Shaft Impactor) loop. In Indian commercial concrete production, hitting IS 383 Zone-II grading curve while keeping sub-150-micron (minus-200 mesh) ultra-fines manageable separates profitable M-Sand operations from high-rejection stockyards.
1. Mechanism Breakdown: Rotor-on-Anvil vs. Rotor-on-Rock
Choosing the right internal configuration depends on feed abrasion index (Bond Work Index / quartz content) and target cubicity:
- Rotor-on-Rock (Autogenous / Rock Shelf): Material accelerates through the high-speed rotor and impacts a stationary shelf of packed rock inside the crushing chamber. Best for abrasive granites and quartzites where zero metallic contamination and minimum tip/anvil wear are mandatory. Power draw is slightly higher due to internal friction losses.
- Rotor-on-Anvil (High-Chrome or Tungsten Tips): Material hits high-chrome or tungsten-carbide anvil rings directly. Delivers superior energy transfer, tighter cubic particle shape, and higher fines generation. Preferred when low-to-medium silica limestone or Basalt with poor natural cleavage needs aggressive reshaping.
2. Comparative Performance Matrix
| Parameter | Rotor-on-Rock (Autogenous) | Rotor-on-Anvil (Metallic) |
|---|---|---|
| Particle Shape (Flakiness) | Good (cubic index ~75-80%) | Superior (cubic index ~85-92%) |
| Minus 150-micron (Fines) Generation | Moderate (easier to control silt/clay band) | High (requires air/water classifier adjustment) |
| Wear Cost per Tonne | Low wear-metal consumable replacement | Higher tip/anvil replacement frequency |
| Optimal Feed Top Size | 35–50 mm max | 25–40 mm max (to prevent rotor plugging) |
3. Tuning VSI RPM for Zone-II Gradation Sweet Spot
Peripheral rotor tip speed ($v = \pi \times D \times N/60$) dictates breakage severity. For Indian Zone-II M-Sand matching 4.75mm down to 150-micron distribution:
- Target tip speeds between 65 m/s and 78 m/s. Exceeding 85 m/s over-crushes the middle fraction (1.18mm to 600-micron deficiency gap), creating a gap-graded sand that bleeds water in ready-mix concrete (RMC) trucks.
- Monitor recirculating load ratios (target 150–250% circulating load); starving or choking the VSI feed box alters velocity distribution and broadens fineness modulus (FM) outside the 2.6–2.9 target range.
Coming Up in Part 4 (Tomorrow): Wet vs. Dry Washing & Decantation Physics for Minus-150-Micron Fines Control. Stay tuned to Construction Technology Today!
