Crushing, Screening & Washing Series (Day 1 of 5): Architecture of Modern M-Sand & Crushed Aggregates Plants in India

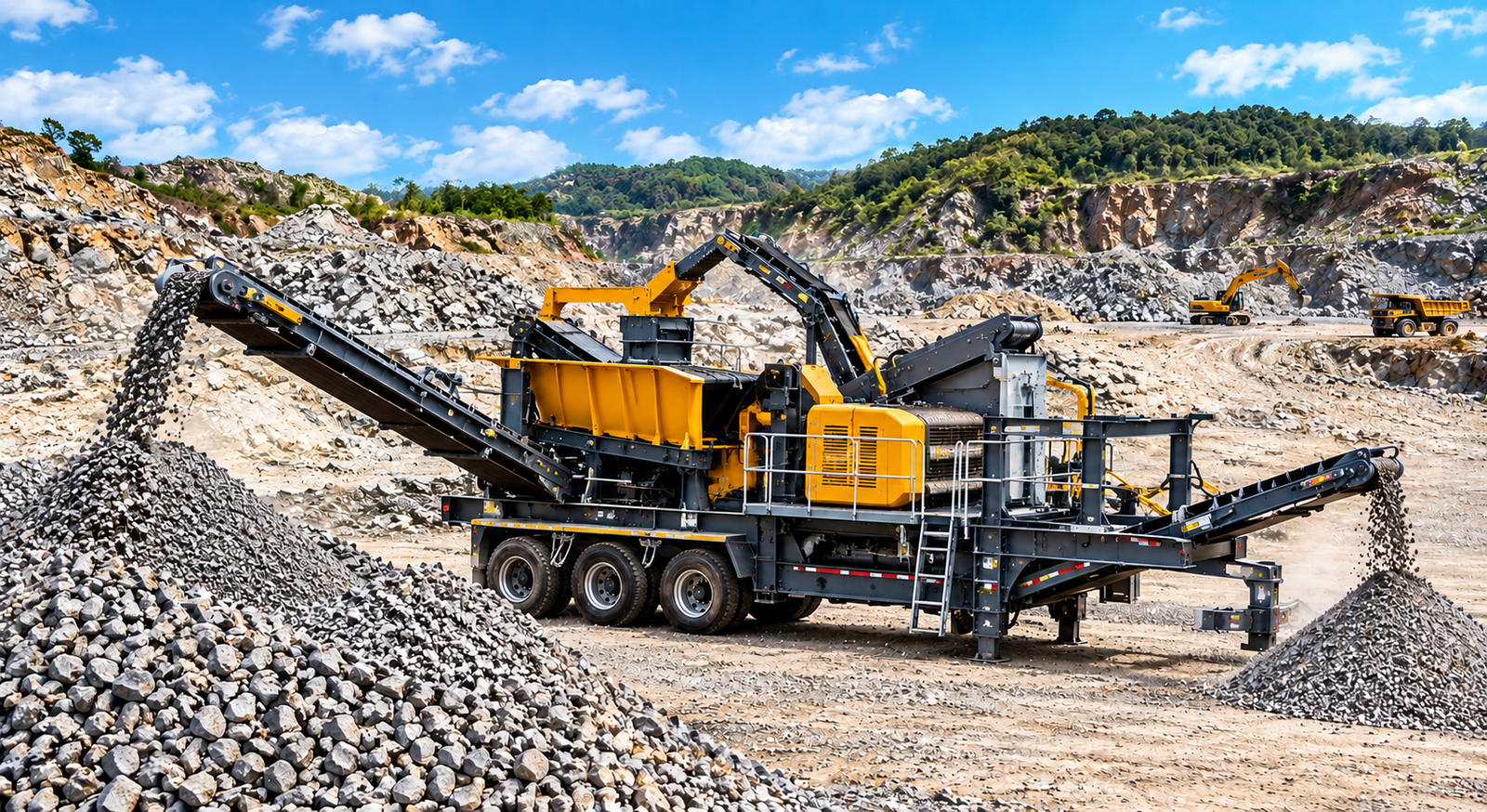

Crushing, Screening & Washing Series | Part 1 of 5: Plant Architecture & Primary Circuit Fundamentals
Welcome to Construction Technology Today’s 5-part technical intelligence series on modern aggregate processing, Manufactured Sand (M-Sand) geometry control, and closed-loop washing efficiency. As national highway corridors, high-speed rail packages, and urban metro works demand strict flakiness and elongation indices (generally restricted under 30% and 15% respectively), the traditional single-stage crushing setup is obsolete.
Part 1 establishes the baseline engineering blueprint: designing a resilient multi-stage crushing and primary scalping circuit capable of handling high-silica basalt, hard granite, and quartzite feed variations without choking downstream VSI and screening decks.
1. Feed Scalping & Primary Reduction Dynamics
The lifecycle cost of an aggregate plant is dictated upstream before material ever hits the secondary cone or VSI. Effective primary stage engineering requires:
- Vibrating Grizzly Feeders (VGF): Implementing multi-step grizzly bars with a minimum 25% open area allows pre-sorting of sub-spec fines and overburden dirt before primary compression. Bypassing natural fines cuts jaw wear plates lifespan degradation by up to 18%.
- Primary Jaw vs. Gyratory Selection: For hard rock installations exceeding 200 MPa compressive strength (common in southern and central Indian quarry belts), heavy-duty single-toggle jaw crushers with wide feed opening ratios (minimum 1200x900 mm for 350+ TPH lines) ensure nip-angle stability.
- Closed-Loop Surge Bins: Avoiding starvation at the secondary cone feed hopper requires surge bin residence times of at least 15–20 minutes to smooth loader feeding intermittency.
2. Gradation Control & Reduction Ratio Balancing
A frequent operational failure in Indian M-Sand/aggregate commercial quarries is forcing a high reduction ratio across a single secondary stage, leading to excessive micro-fracturing and high power draw per tonne:
| Stage | Equipment Type | Target Feed Size (mm) | Recommended Reduction Ratio | Primary Function |
|---|---|---|---|---|
| Primary | Single-Toggle Jaw / Gyratory | 700–900 | 3.5 : 1 to 4.5 : 1 | Reduction to minus 150–200 mm benchmark |
| Secondary | Multi-cylinder Cone / Impact | 150–200 | 3.0 : 1 to 4.0 : 1 | Interparticle (mantle-to-bowl) cubic shaping |
| Tertiary / VSI | Vertical Shaft Impactor (Rotor/Anvil) | 35–50 | 2.0 : 1 to 2.5 : 1 | Manufactured sand shape-correction & Zone-II grading match |
3. Engineering Takeaway for Quarry Owners
Optimizing kilowatt-hour-per-tonne metrics starts with choke-feeding secondary cones and maintaining eccentric throw settings aligned with local quarry feed abrasion index. Underfeeding a secondary cone destroys uniform compression, producing flaky needle-shaped particles that fail IS 383 mix designs.
Coming Up in Part 2 (Tomorrow): Cone Crusher Chamber Optimization & Interparticle Crushing Physics. Stay tuned to Construction Technology Today!
